铜铝连接管
铜铝连接管

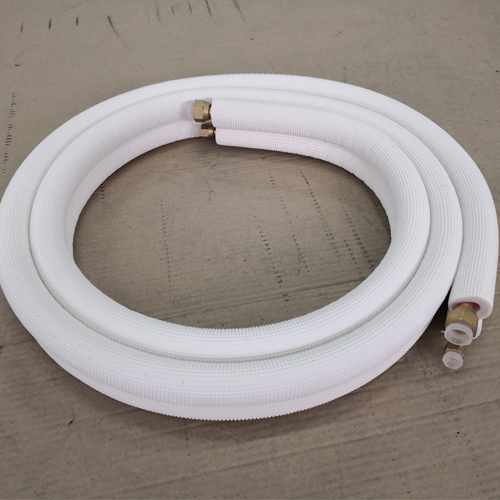

Insulated Copper-Aluminum Connecting pipe
本公司经多年研发，采用新的焊接工艺，专业生产铜铝连接管，质量可靠，外型美观，性价比高，能为客户提供各种规格及长度的铜铝连接管。
本产品适用于空调及类似设备制冷系统管路内外连接。
With years of research and development, we use the new welding technology to produce copper-aluminum connecting pipe
with reliable quality, economical cost, and offer all sizes and length of the Cu-Al connecting pipes.
The products are suitable for air conditioning and refrigeration equipment pipe system.
铜铝连接管（被覆复合压花保温管）
COPPER-ALUMINUM CONNECTING PIPE FOR AIR CONDITIONER
(Insulated with Double layers PE insulation)
Technical Specifications for Insulated Copper Aluminum Connecting Pipe 常用铜铝连接管尺寸
|
Size 规格 |
Cu Pipe Size (mm) 铜管 |
Al Pipe Size (mm) 铝管 |
Insulation Size (mm) 保温管 |
Length (m) 长度 |
||||
|
Out Diameter |
Thickness |
Length |
Out Diameter |
Thickness |
Out Diameter |
Thickness |
||
|
1/4” |
Ф6.0 |
0.7 |
80-150 |
Ф6.0 |
1.0 |
Ф8 |
8-20 |
3-15 |
|
1/4” |
Ф6.35 |
0.7 |
80-150 |
Ф6.35 |
1.0 |
Ф8 |
8-20 |
3-15 |
|
3/8” |
Ф9.52 |
0.7 |
80-150 |
Ф9.52 |
1.0 |
Ф12 |
8-20 |
3-15 |
|
1/2” |
Ф12.0 |
0.8 |
80-150 |
Ф12.0 |
1.2 |
Ф15 |
8-20 |
3-15 |
|
1/2” |
Ф12.7 |
0.8 |
80-150 |
Ф12.7 |
1.2 |
Ф15 |
8-20 |
3-15 |
|
5/8” |
Ф15.88 |
1.0 |
80-150 |
Ф15.88 |
1.3 |
Ф18 |
8-20 |
3-15 |
|
3/4” |
Ф19.05 |
1.0 |
80-150 |
Ф19.05 |
1.5 |
Ф22 |
8-20 |
3-15 |
|
Insulation保温管: PE Foam, Rubber (客户可选PE保温管或橡塑保温管) Normal length常规长度: 3 / 4 / 5 / 7 / 10 / 15 Meters Option可选附件: Wrap, Adhesive Tape, Wall Bushing, Tube Clamp, Screws, Putty, Drainage Tube |
||||||||
